Eco Mini Rail System-Product Details

Overview

The rail-less system facilitates the rapid mounting of framed PV module on square or trapezoidal metal sheet roofs which width is equal to or greater than 25mm with minimum thickness 0.8mm. A base mounting Mini Rail is 100 – 300mm long, therefore easy to carry and attach to almost all trapezoidal sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet. Railless mounting system allow for easy logistics, cost-effective warehousing and easy mounting.

Available Sizes:

300x65x40mm 300x65x60mm Customized

Solar Mini Rail 300x65x2x40mm

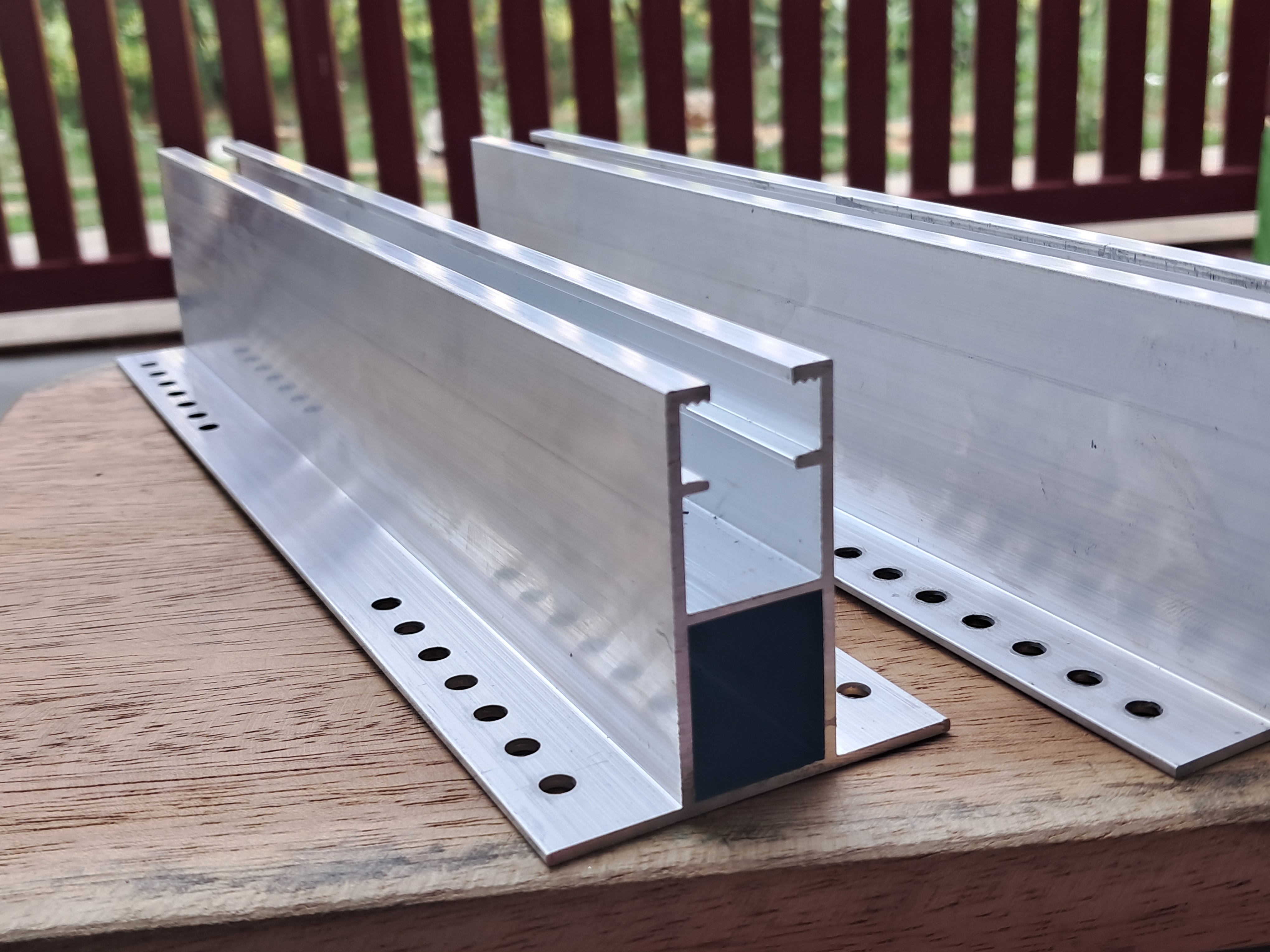

Solar Mini Rail 300x65x2x60mm

Mid Clamp (45x45x4mm)

Z End Clamp (45x35x37x3mm)

T-Nut(40x20x8mm)

SS304 Allen Cap Bolt(M8x20mm)

SS304 Allen Cap Bolt(M8x50mm)

2.5MM 100% EPDM Sheet(65x25mm)

5mm Multi Grip Blind Rivet(SS&AL)

Kits

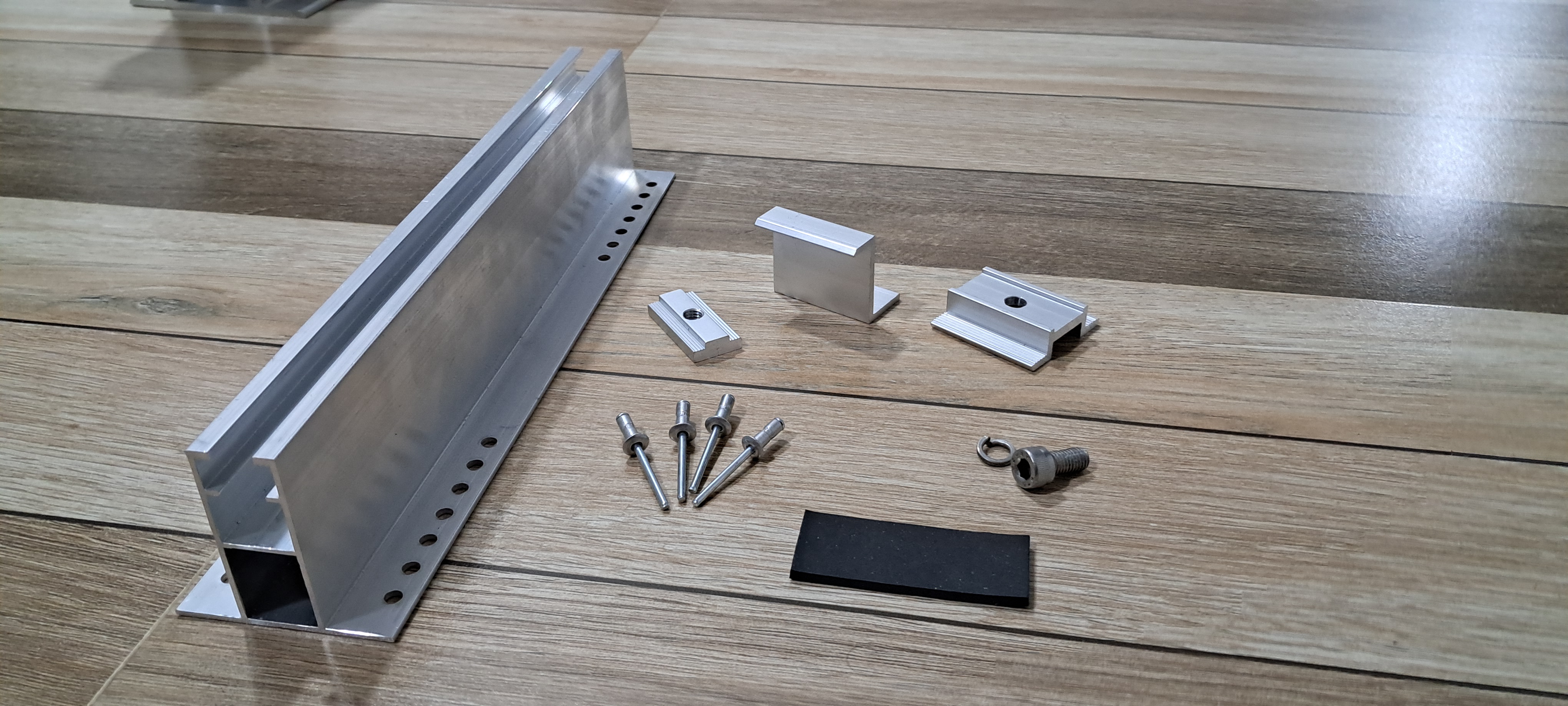

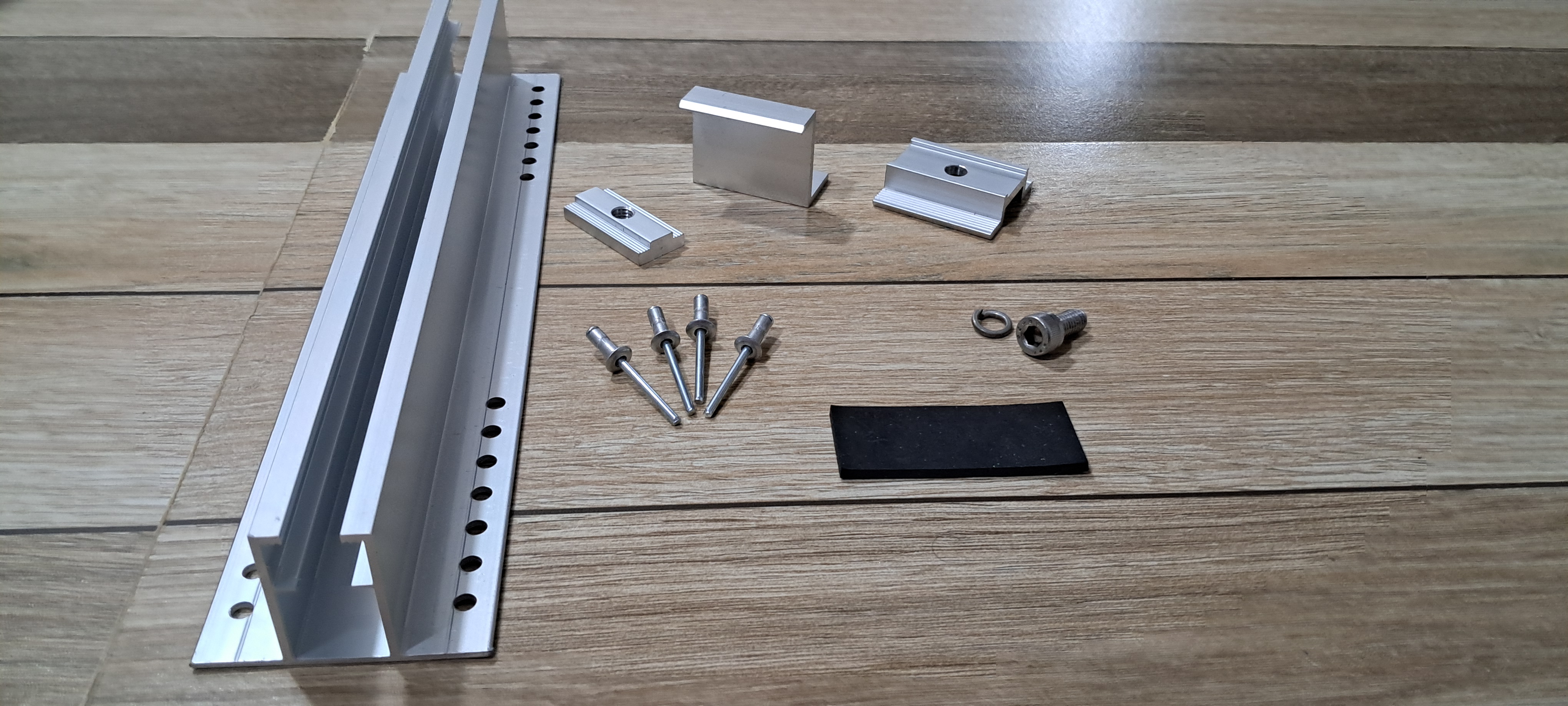

40mm MINI RAIL KIT

60mm MINI RAIL KIT

Why Us

Superior Grade Raw Material used
Ultra Edge Cutting Machine Used
No compromise on Quality
100% Anodized Product (Export)
All Inter connecting accessories made of SS304

Advantages

Simple Install System
Cost Saving
Withstands high pressure, Lateral/Vertical/Pull-Out Load
Stability and durability
Less Hardwares.
Environmental friendly
Easy dismantling and Re-usable.
Immediately Loadable

Material Aluminum 6005-T5 & SS304/316
ApplicationTrapezoidal sheet metal roof
Dimension300mm OR Customized
Tilt Angle 5-60 Degree
Orientation Landscape / Portrait
ColorNatural / Anodized
Standard AS/NZS 1170
Wind Load60m/s
Snow Load 1.4Kn/m2
Certification ISO9001
Warranty10 Yrs
Service Life25 Yrs
