Product Details - Elevated Tin Mount

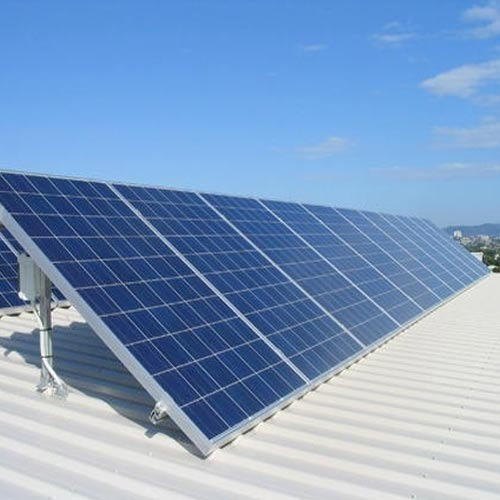

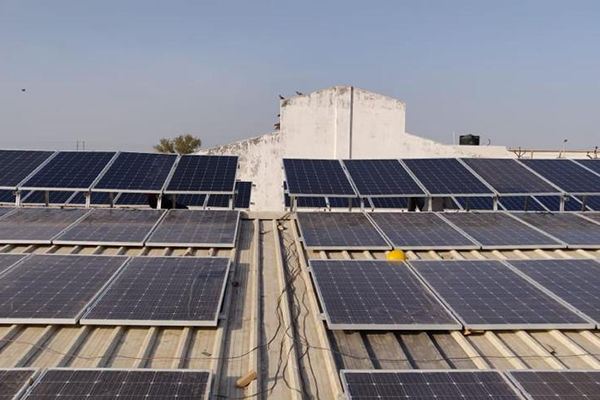

Elevated Tilt Mount Structure
.jpg)

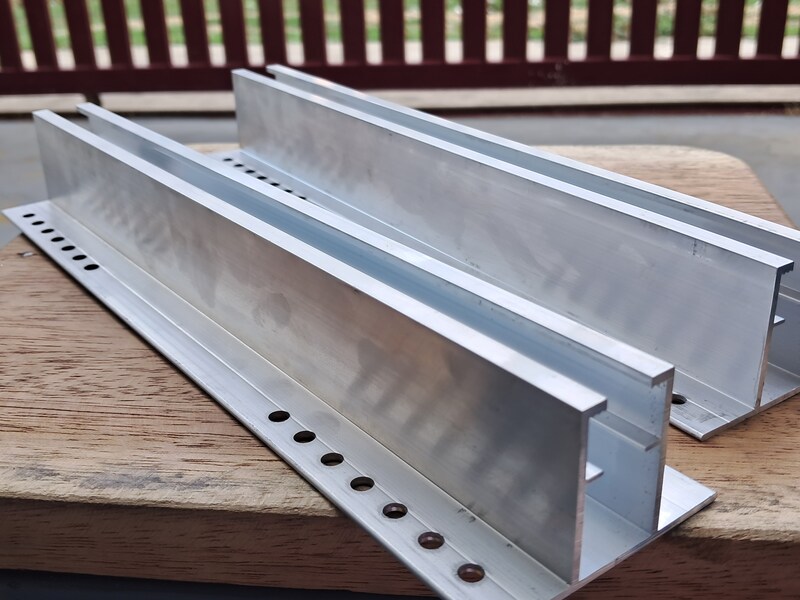

Solar Mini Rail 300x65x2x40mm
Solar Long Rail 50x40x2x3650mm

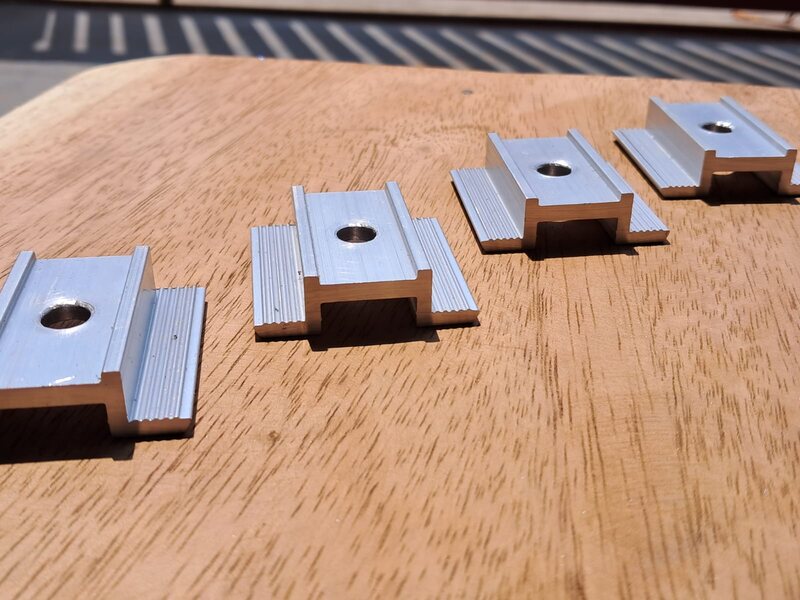

Mid Clamp (45x45x4mm)

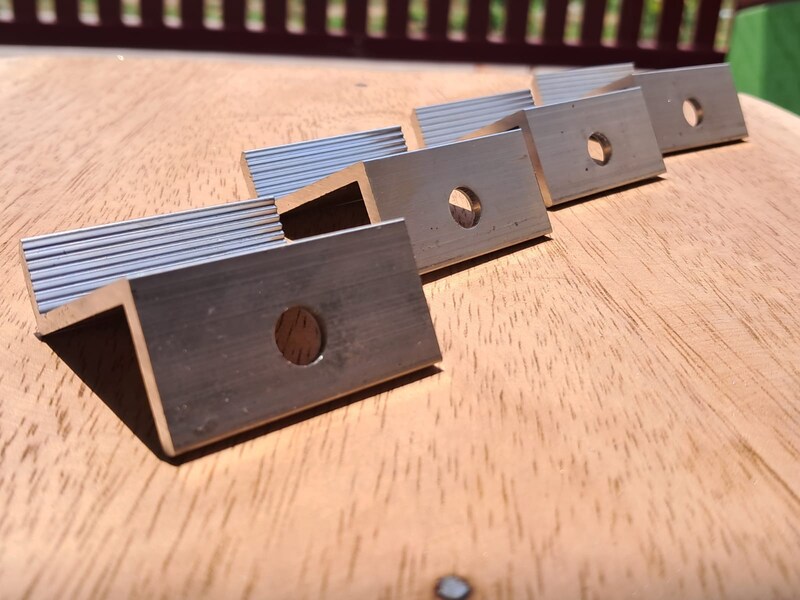

Z End Clamp (45x35x37x3mm)
T-Nut(40x20x8mm)

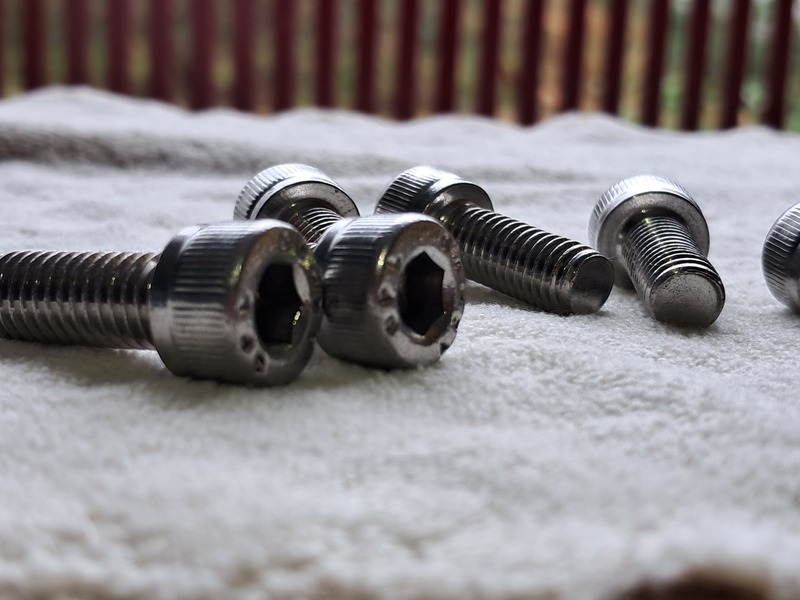

SS304 Allen Cap Bolt(M8x20mm)
SS304 Allen Cap Bolt(M8x50mm)

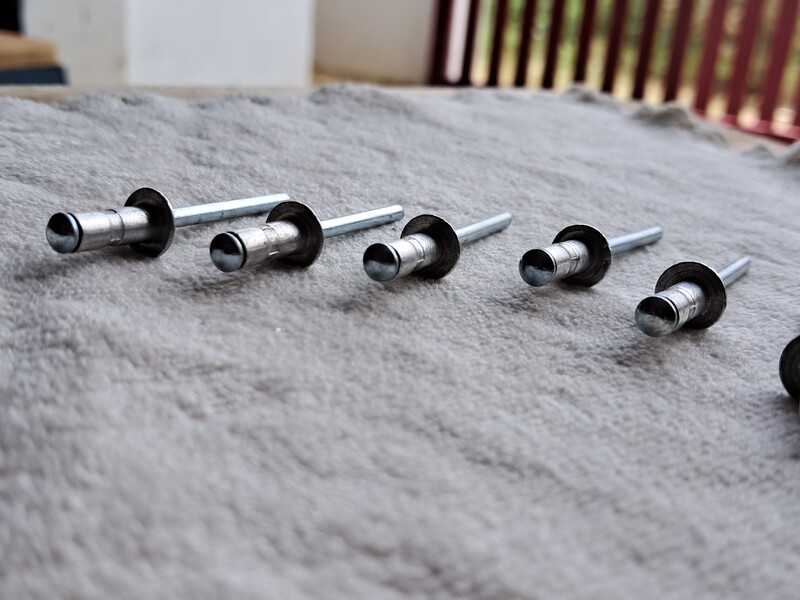

5mm Multi Grip Blind Rivet(SS&AL)

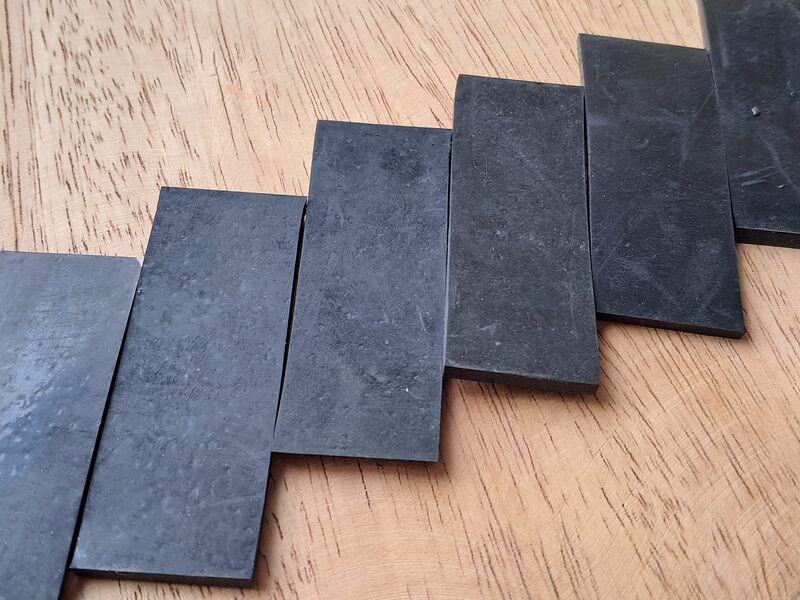

2.5MM 100% EPDM Sheet(65x25mm)

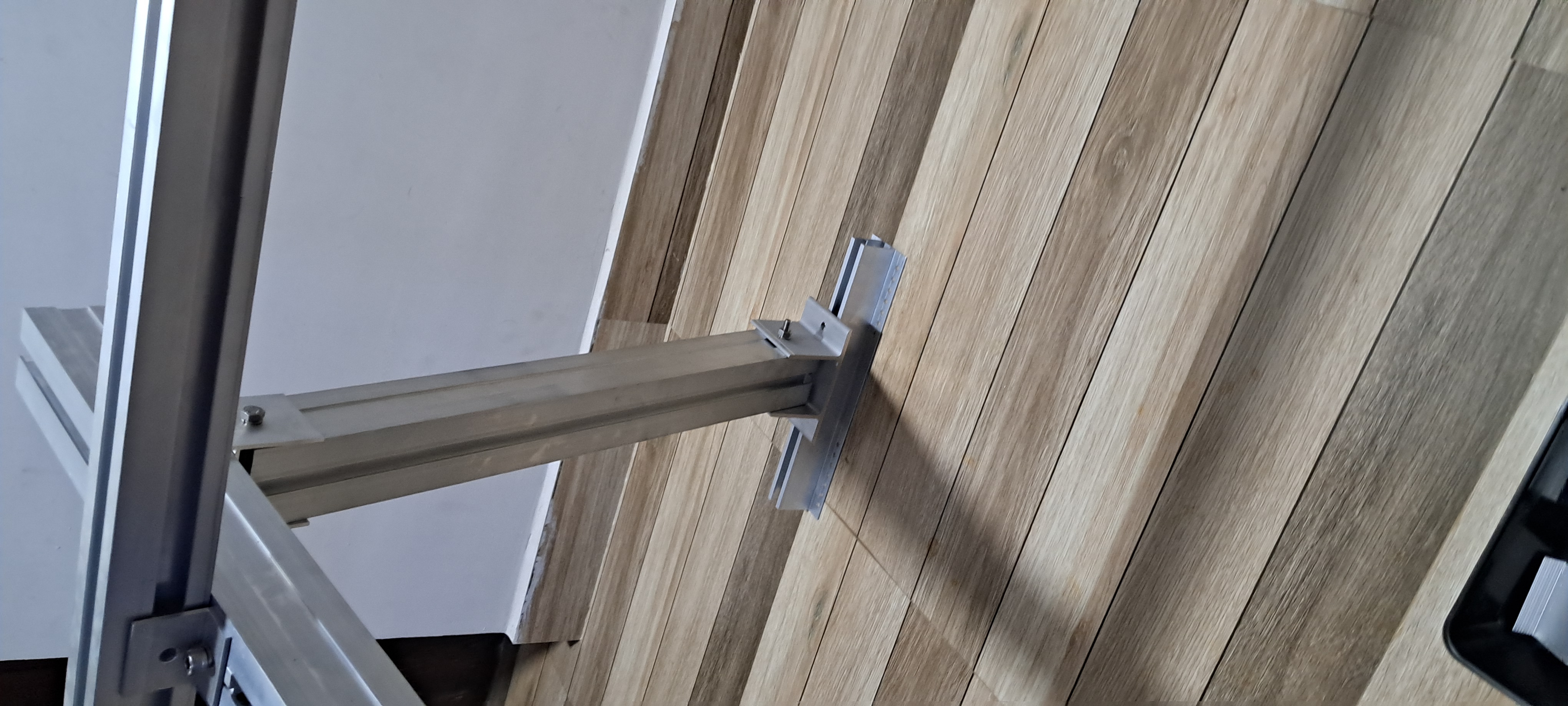

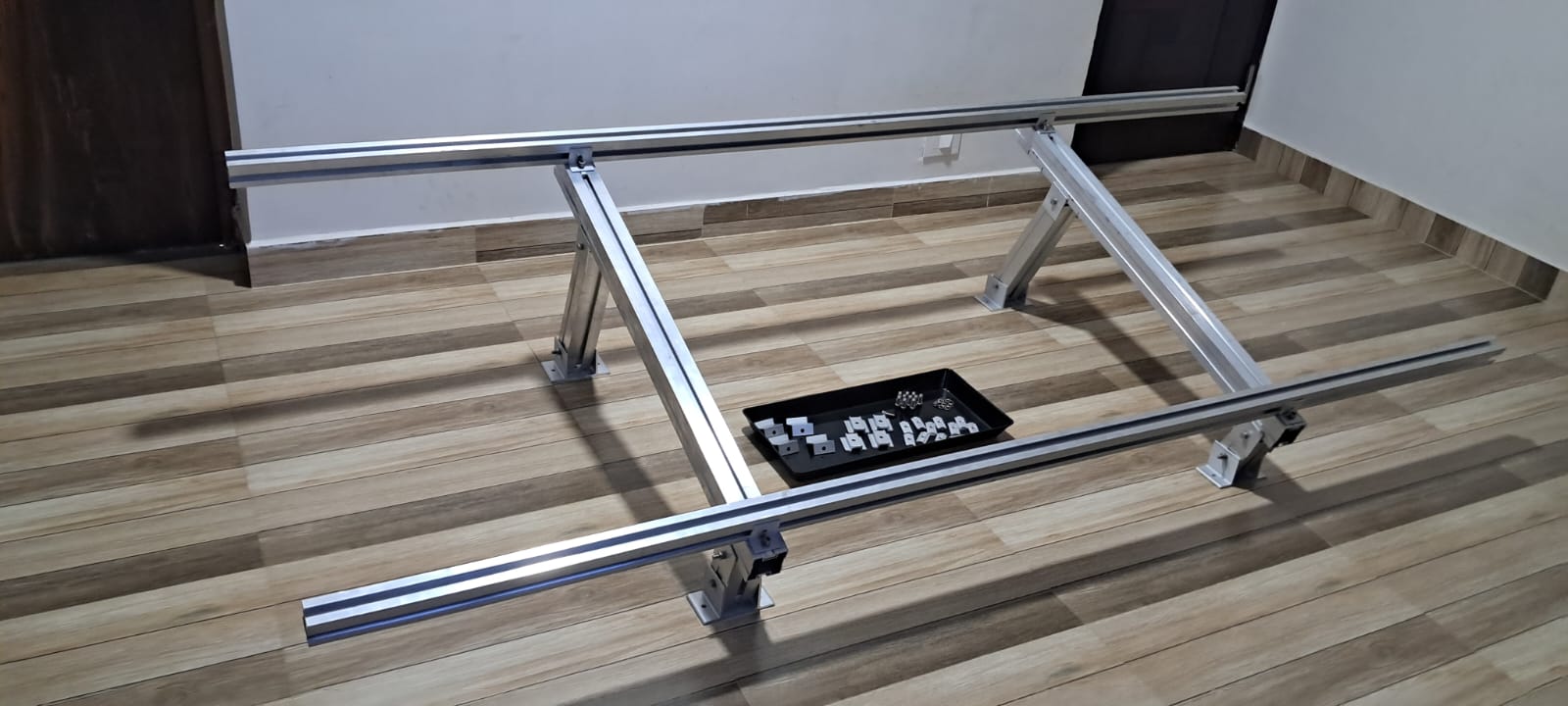

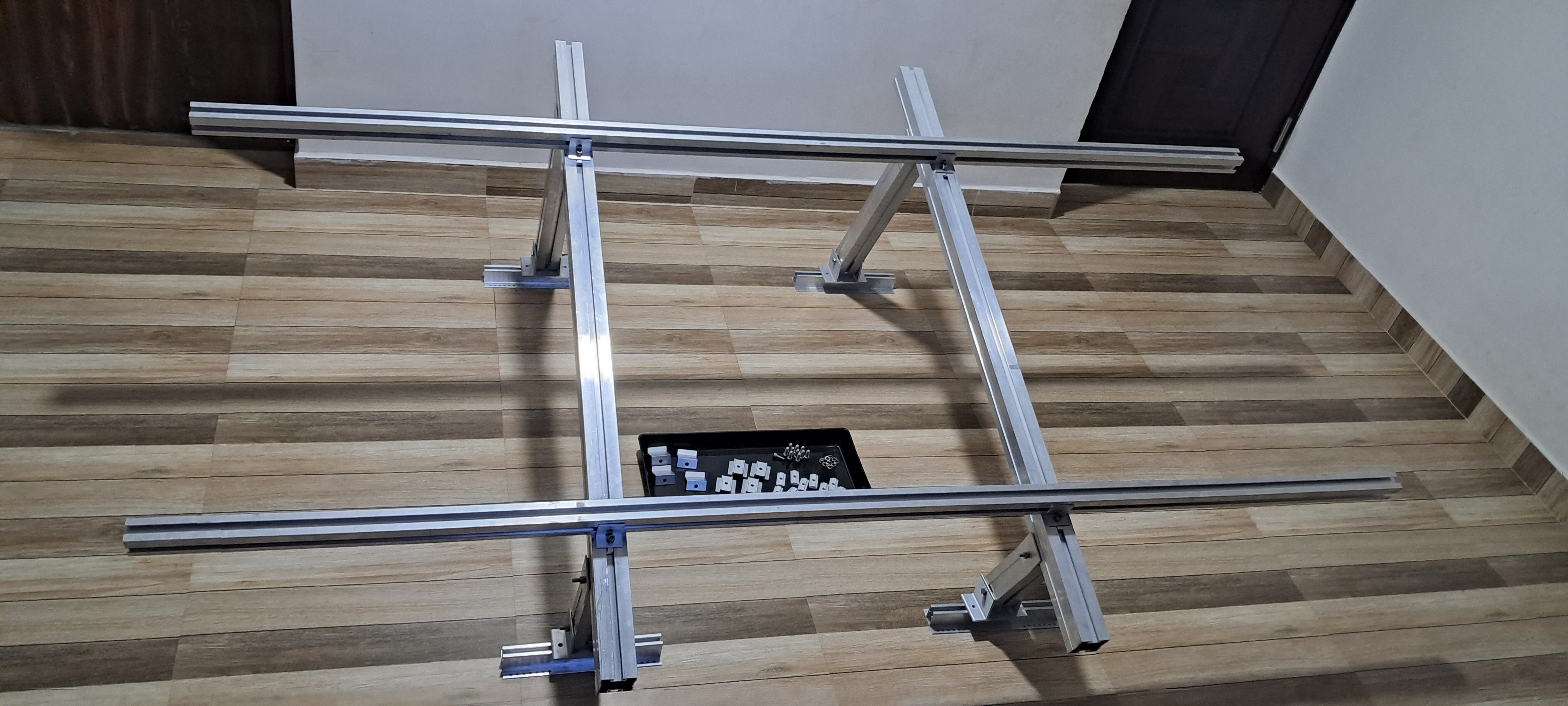

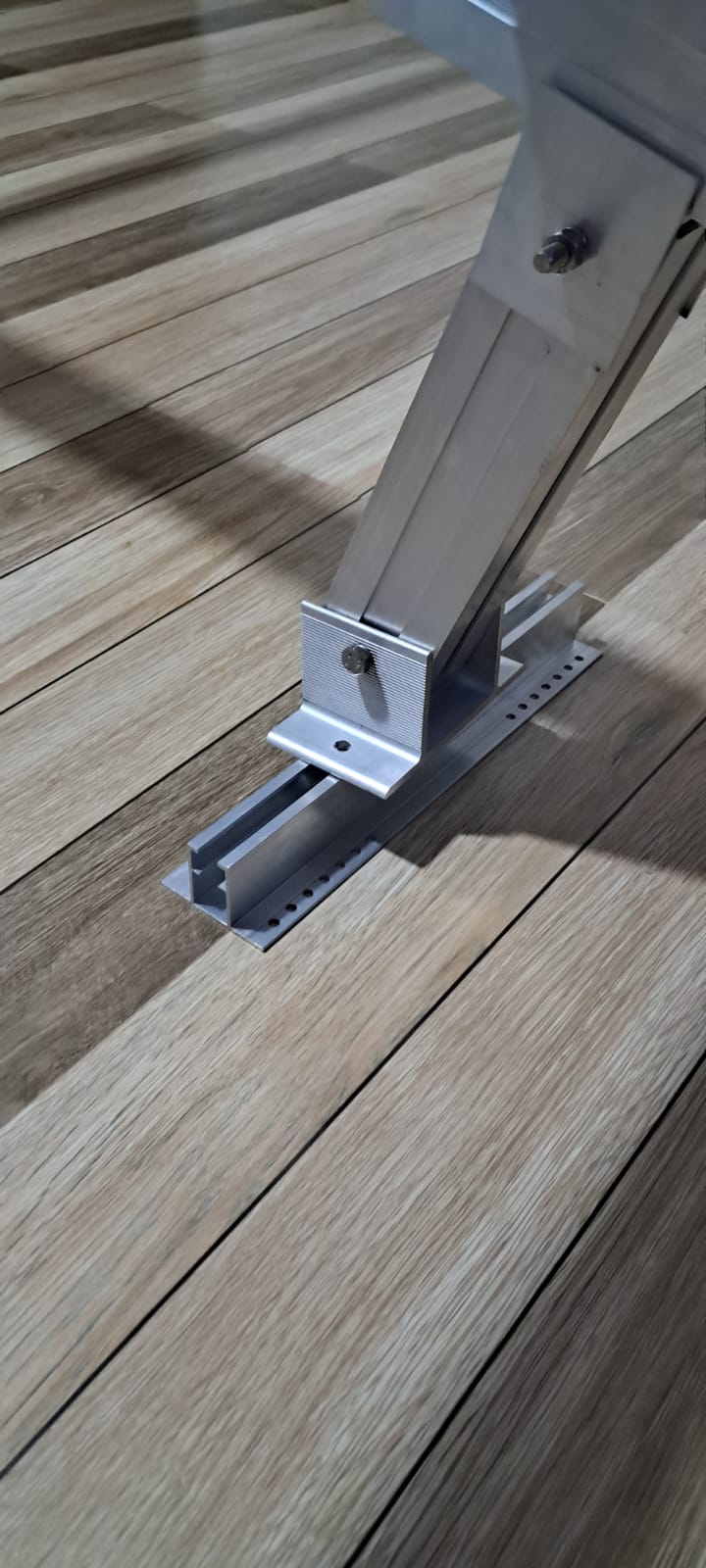

Elevated Kit

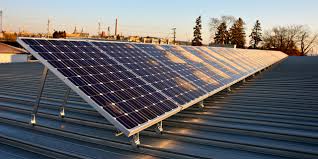

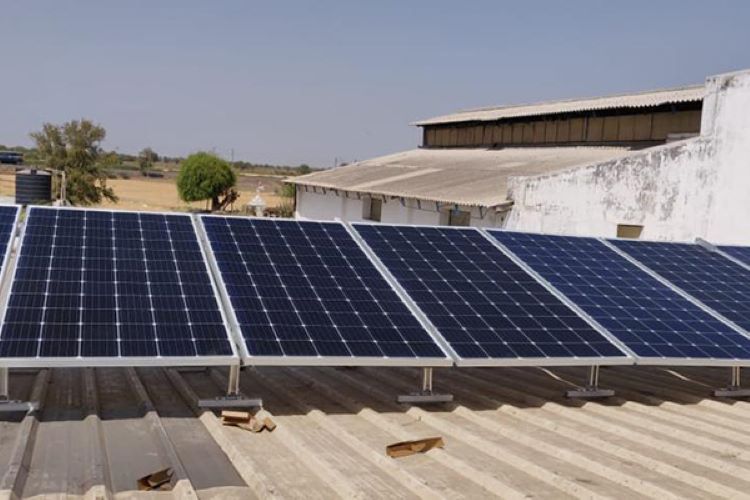

Our Sol-be Fixed Or Adjusustable Tin Roof Mounting System is designed at a tilt angle from 10° to 60°, which means it's very flexible to get the maximum solar power output. Moreover, the installation is very convenient, which is the choice of many customers. Eco Tin Roof Solar Mounting System offers custom-designed solutions. It can be applicable for both commercial and residential which is very fast installation and save labor cost.. The whole structure is made of high strength extruding Aluminum alloy with SS304/316 Fasteners.
Why Us
- Superior Grade Raw Material used
- ease of Add on Modules
- No compromise on Quality
- 100% Anodized Product (Export)
- All Inter connecting accessories made of SS304
Advantages
- Simple Install System
- Cost Saving
- Withstands high pressure, Lateral/Vertical/Pull-Out Load
- Stability and durability
- Less Hardwares.
- Environmental friendly
- Easy dismantling and Re-usable.
- Immediately Loadable
- Material Aluminum 6005-T5 & SS304/316
- ApplicationTrapezoidal sheet metal roof
- DimensionCustomized
- Tilt Angle 10-60
- Orientation Landscape
- Color Natural / Anodized
- Standard AS/NZS 1170
- Wind Load60m/s
- Snow Load 1.4Kn/m2
- Certification ISO9001
- Warranty10 Yrs
