Product Details - Standing Seam System(Rail Less)
Overview

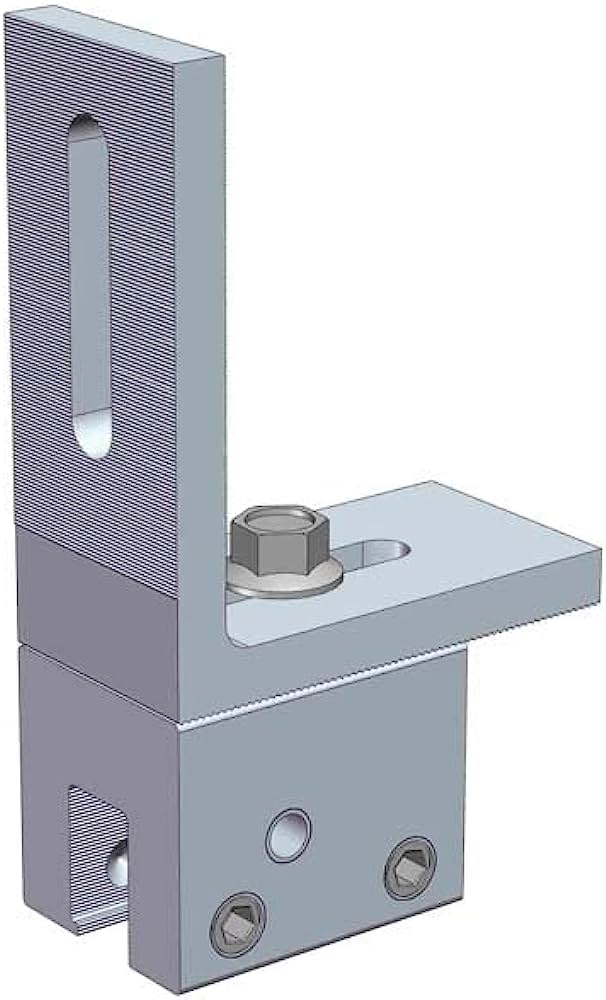

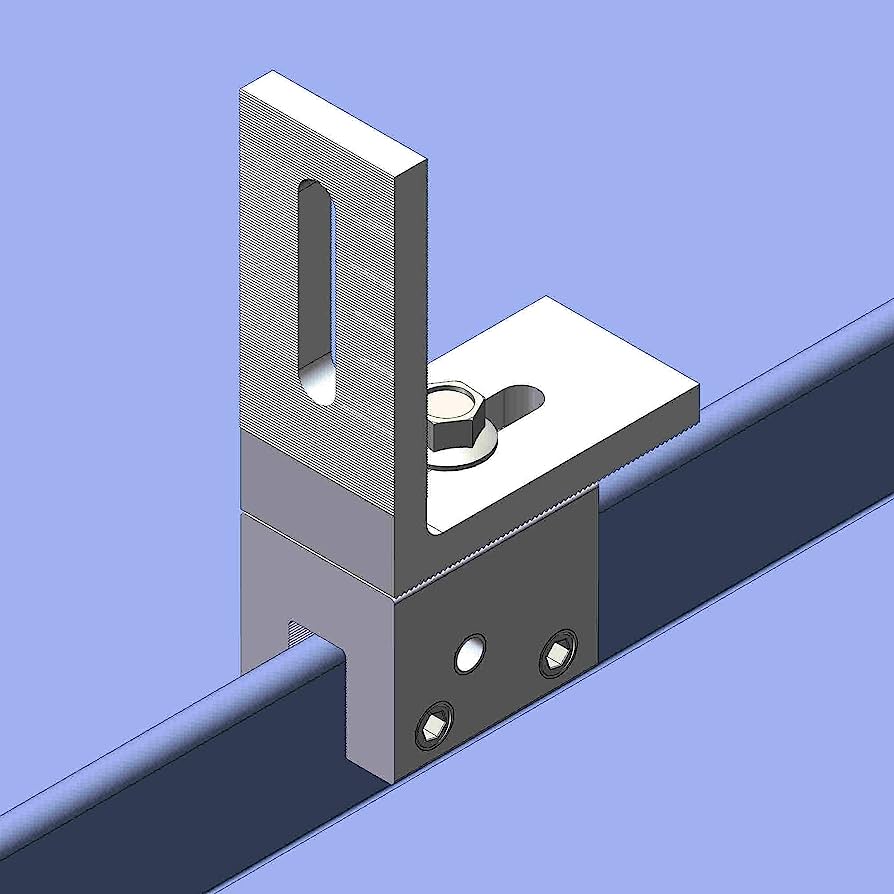

Standing Seam Clamp (50x40x38mm)

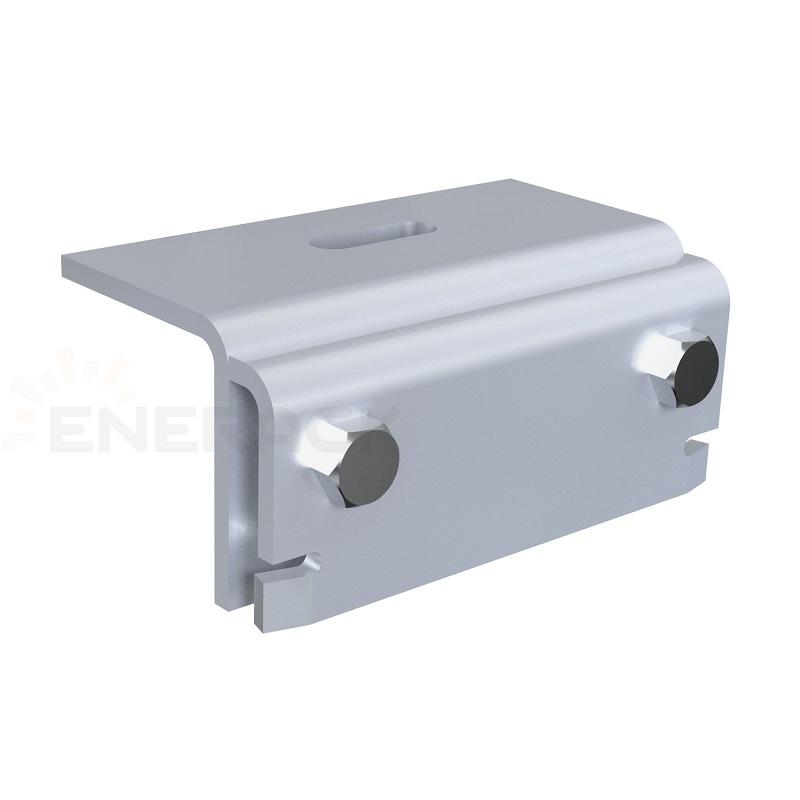

Standing Seam Clamp
Standing Seam Clamp
Standing Seam Clamp
L Bracket
Long Rail 40x50mm
T-Nut
T Bolt with Nut
Self Threaded Screw 5x50mm
SS304 Allen Cap Bolt(M8x15mm)
L Braket (50x38x3mm)
Rail Inter Connector (100x38x3mm)
Spring nut
EPDM 40x40mm

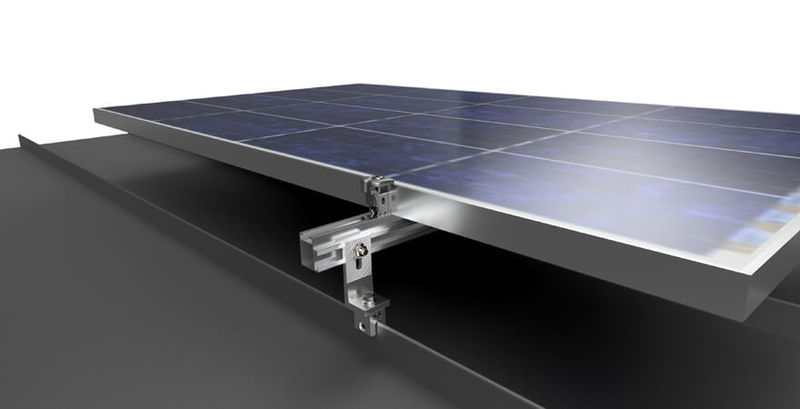

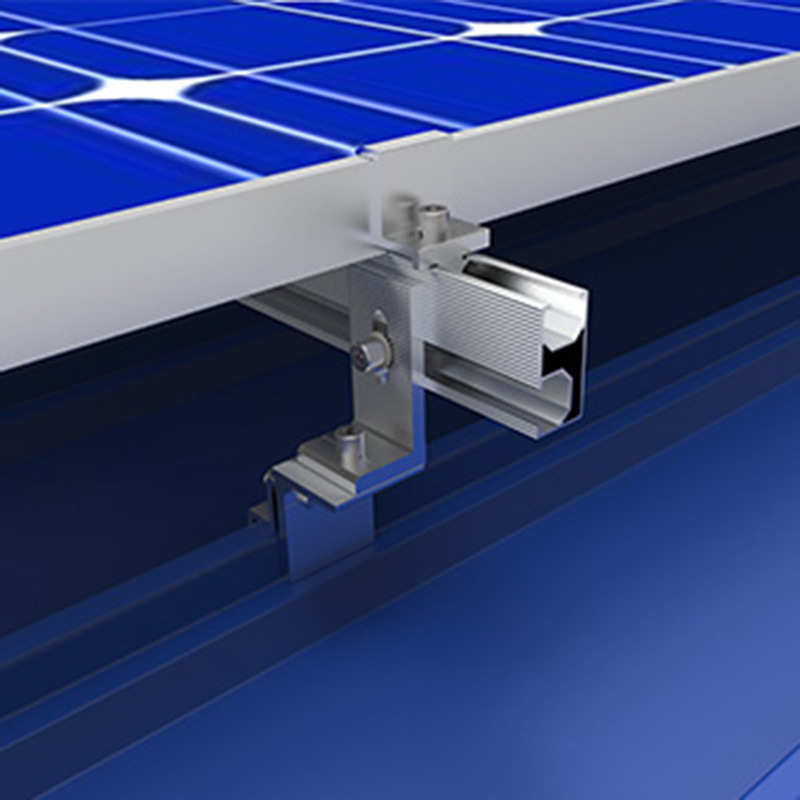

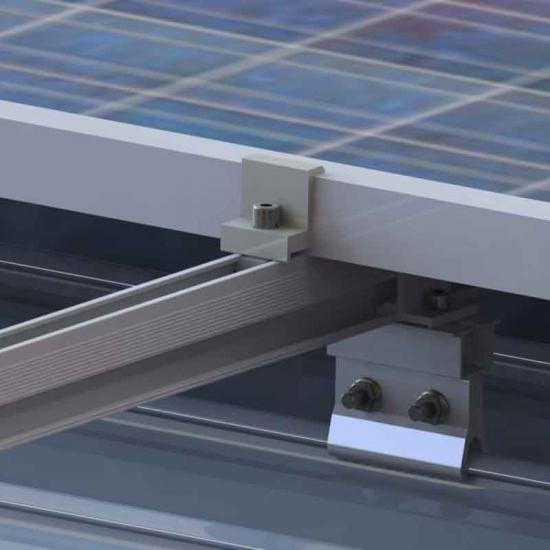

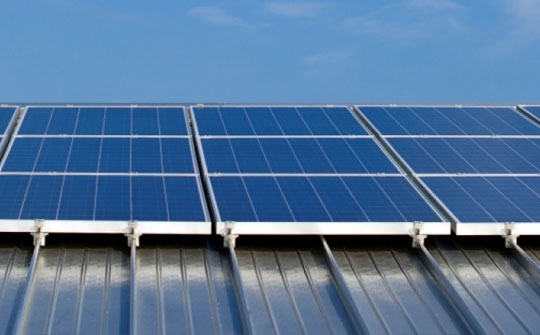

The rail-less system facilitates the rapid mounting of framed PV module on square or trapezoidal metal sheet roofs which width is equal to or greater than 25mm with minimum thickness 0.8mm. A base mounting Mini Rail is 100 – 300mm long, therefore easy to carry and attach to almost all trapezoidal sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet. Railless mounting system allow for easy logistics, cost-effective warehousing and easy mounting.
Why Us
- Superior Grade Raw Material used
- Ultra Edge Cutting Machine Used
- No compromise on Quality
- 100% Anodized Product (Export)
- All Inter connecting accessories made of SS304
Advantages
- Simple Install System
- Cost Saving
- Withstands high pressure, Lateral/Vertical/Pull-Out Load
- Stability and durability
- Less Hardwares.
- Environmental friendly
- Easy dismantling and Re-usable.
- Immediately Loadable
- Material Aluminum 6005-T5 & SS304/316
- ApplicationTrapezoidal sheet metal roof
- Dimension300mm OR Customized
- Tilt Angle 5-60 Degree
- Orientation Landscape / Portrait
- ColorNatural / Anodized
- Standard AS/NZS 1170
- Wind Load60m/s
- Snow Load 1.4Kn/m2
- Certification ISO9001
- Warranty10 Yrs
- Service Life25 Yrs
